Ball valves are used at stages in the production process where a single shut-off of the flow of liquids is required. The ball valve series are available in a wide range of alternatives in terms of design and configuration for applications in the food, diary, beverage, chemical, cosmetics and pharmaceutical industries. Ball valves can be controlled manually, with an ergonomic metal handle.

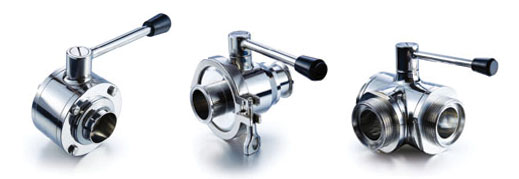

1. sanitary ball valve is a three-piece ball valve, consisting of two flanges, one valve body and two PTFE valve seats. It is installed with threaded ends.
2. sanitary ball valve is a three-way ball valve. It has two configurations: T type and L type. It consists of one valve body, valve covers and PTFE valve seats. It is installed with threaded ends.
3. sanitary ball valve is a two-piece ball valve, consisting of one valve body, valve adapters and two PTFE valve seats. It is installed with clamped ends.
| Technical Data | ||
|---|---|---|
| Metal material | Product wetted |
304L/316L (DIN-1.4307/1.4404) forged 304 (DIN-1.4301) |
| Seal material | Standard Options |
PTFE/EPDM FPM/PTFE, HNBR/PTFE, Silicone/PTFE |
| Temperature | Continuous working temperature Sterilization temperature |
-20°C ~ +135°C (EPDM/PTFE) 150°C (Max 20min) |
| Pressure | Working pressure Control air pressure |
0~16bar 0~16bar |
| Surface treatment | Internal surface External surface |
Ra≤0.8µm Matte |
| Connection | Connection methods | welding, thread, clamp, flange |
